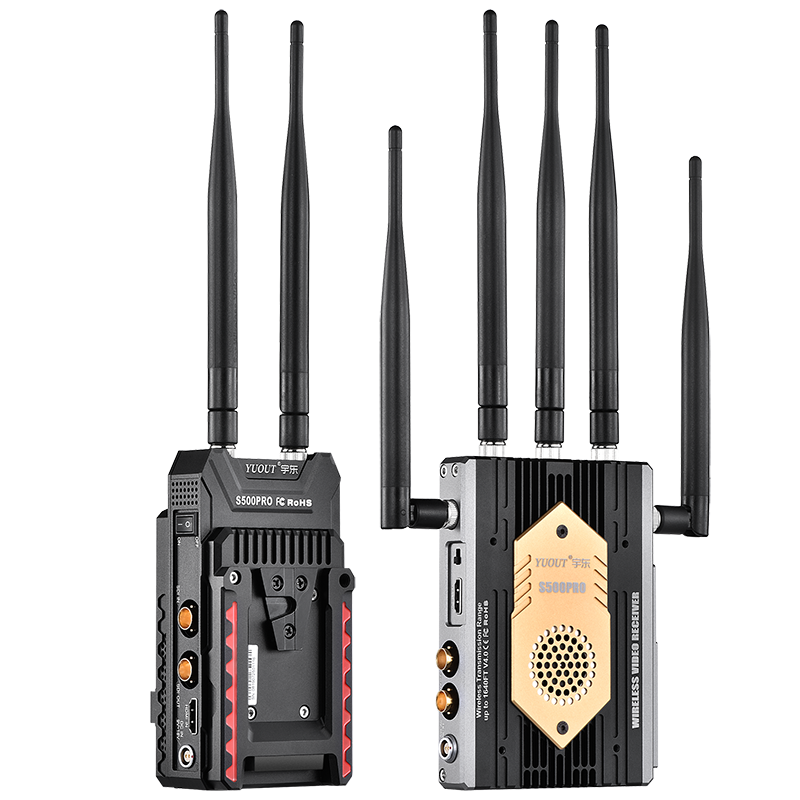

YDS500PRO

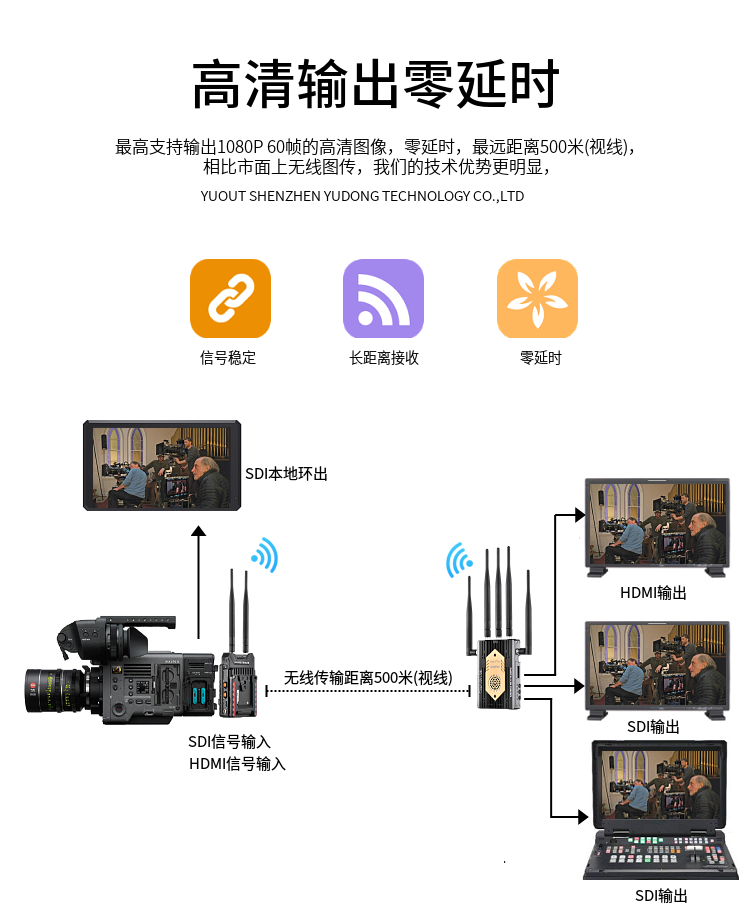

The transmitter has two SDI ports and one HDMI port, one of which is looped out locally and can be connected to an SDI monitor. The receiver is equipped with a V-port gusset, which can use a V-port battery and has a visual range of 500 meters +. It is mainly used in broadcasting, broadcasting live: broadcasting field, sports broadcasting, social news, air live, studio, mountaineering expedition and so on.
發射器 | 接收器 | |
接口 |
SDI 輸入(BNC 母頭); HDMI 輸入 (Type A 母頭); 2 天線接口 (PR-SMA 公頭); DC 輸入 (2針 LEMO 母頭) |
SDI 輸出(BNC 母頭); HDMI 輸出 (Type A 母頭); DC 輸入 (2 針 LEMO 母頭) |
供電電壓范圍 | 7-18V DC | 7-18V DC |
功耗 | <7W | < 9.5W |
成品尺寸 |
(長x寬x高): 80×143×40mm 不包含外接天線 |
(長x寬x高): 142×100×22mm 不包含外接天線 |
輸入視頻格式 |
HDMI: 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p 23.98/24/25/29.9/30/50/59.94/60; HDMI Type A; SDI: 3G, HD, and SD-SDI (auto-selected), SMPTE-259/274/292/296/372/424/425; 1 x BNC |
/ |
輸出視頻格式 | / |
HDMI: 525i, 625i, 720p 50/59.94/60,1080i 50/59.94/60, 1080p23.98/24/25/29.9/30/50/59.94/60; HDMI Type A SDI: 3G, HD, and SD-SDI (auto-selected), SMPTE-259/274/292/296/372/424/425; 1x BNC |
頻帶 | 4.9-5.9GHz,可調整為中國、北美、歐洲的相應頻帶 | 4.9-5.9GHz,可調整為中國、北美、歐洲的相應頻帶 |
傳輸距離/延時 | 空曠距離最遠可達約500米 | 無壓縮零延時 |
發射功率 | Maximum 17dBm | / |
接收靈敏度 | / | -75dBm |
帶寬 | 40MHz | 40MHz |
溫度范圍 | 0 ~ 40°C (工作情況); -20~60°C(儲存情況) | 0 ~ 40°C (工作情況); -20~60°C(儲存情況) |
屏幕 | 0.96 inch OLED | 0.96 inch OLED |
