Home ? Product ? 300m~800m Wireless

1000m wireless

1000m wireless

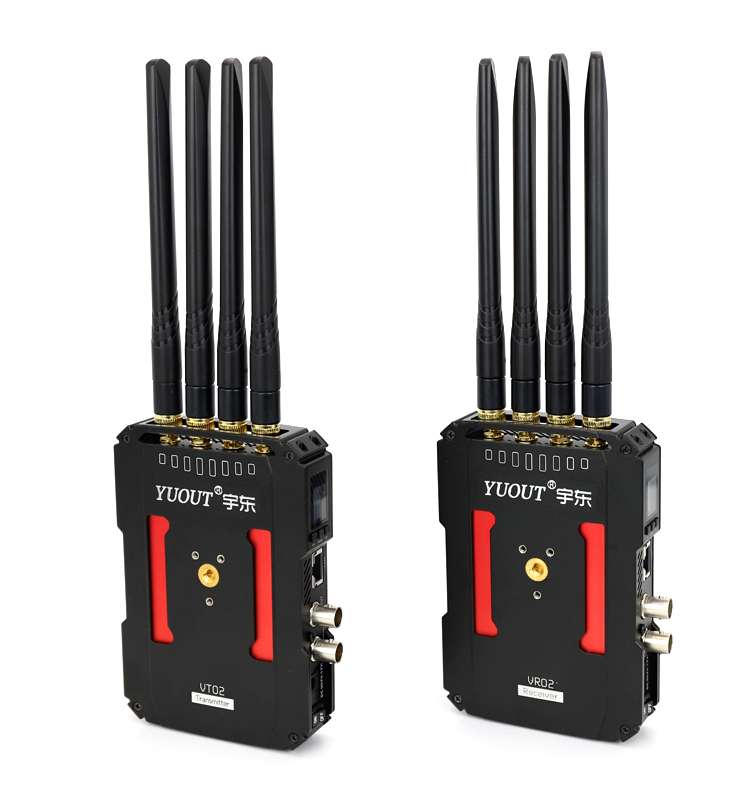

YD-TQ1000-DS

YD-TQ1000-DS is composed of transmitter and receiver, support 3G/HD/SD-SDI or HDMI 1080P full HD signal transmission, as a picture transmission, the line of sight unblocked transmission distance of 1000 to 1500 meters. The frequency band adopts 5.1-5.8GHz, which supports the user's manual communication frequency adjustment, pairing the transmitter and the receiver, and also supports the broadcast mode, which can set multiple receivers to the same frequency as a transmitter to achieve one more reception. Pure hardware connection operation, simple and reliable. Compact design, can be F970, V port, power adapter three power supply, easy to move shooting. It is widely used in film shooting, emergency rescue, fire fighting, civil air defense, armed police, individual video collection in emergencies, etc. Real high-definition wireless transmission, mobile real-time transmission


Consult now
01 Description

        YD-TQ1000-DS is composed of transmitter and receiver, support 3G/HD/SD-SDI or HDMI 1080P full HD signal transmission, as a picture transmission, the line of sight unblocked transmission distance of 1000 to 1500 meters. The frequency band adopts 5.1-5.8GHz, which supports the user's manual communication frequency adjustment, pairing the transmitter and the receiver, and also supports the broadcast mode, which can set multiple receivers to the same frequency as a transmitter to achieve one more reception. Pure hardware connection operation, simple and reliable. Compact design, can be F970, V port, power adapter three power supply, easy to move shooting. It is widely used in film shooting, emergency rescue, fire fighting, civil air defense, armed police, individual video collection in emergencies, etc. Real high-definition wireless transmission, mobile real-time transmission.

02 Features
Features:
1. Ultra-long distance, support real-time transmission of 1080P full HD video, transmission distance up to 1000 meters
2. 5GHz frequency stability is strong, support manual setting of working frequency, good anti-interference ability
3. Support HDMI and SDI dual interface video source input/output
4. Support linear input audio and Tally return
5. Reserve network interfaces to support common Onvif and RTMP network transmission protocols
6. Support RS232 transparent transmission, easy for users to send instructions through the receiving device to control the transmitting end, 232 PCM control function
7. Equipped with external SONY-F970 battery mechanical interface, easy to hang external battery, easy to move
8. Full hardware design, plug and play, simple and convenient, flexible application, subvert the traditional wiring troubles







03 Parameter
發(fā)射機*1
接收機*1
接收靈敏度
/
-70dBm
發(fā)射功率
17dBm
/
工作頻率
5.1~5.8 (GHz)
天線方式
4×4 5dBi外置天線
整機功耗
12W
7-9W
傳輸延時
70ms
信道帶寬
40MHz
工作電壓范圍
DC 12V/2A(7-17V)
傳輸范圍
點對點模式800米
產(chǎn)品尺寸(mm)
142.5(L)×97(W)×33.5(H)
視頻格式
1080P,1080i,720P,576P,576i,480P,480i
音頻格式
PCM, MPEG-2
功能接口
LAN接口;SDI LOOP OUT;SDI IN;DC IN 12V;TALLY OUT;音頻輸入;RS422;HDMI IN
LAN接口;SDI OUT;DC IN 12V;TALLY IN;音頻輸入;RS422;HDMI OUT

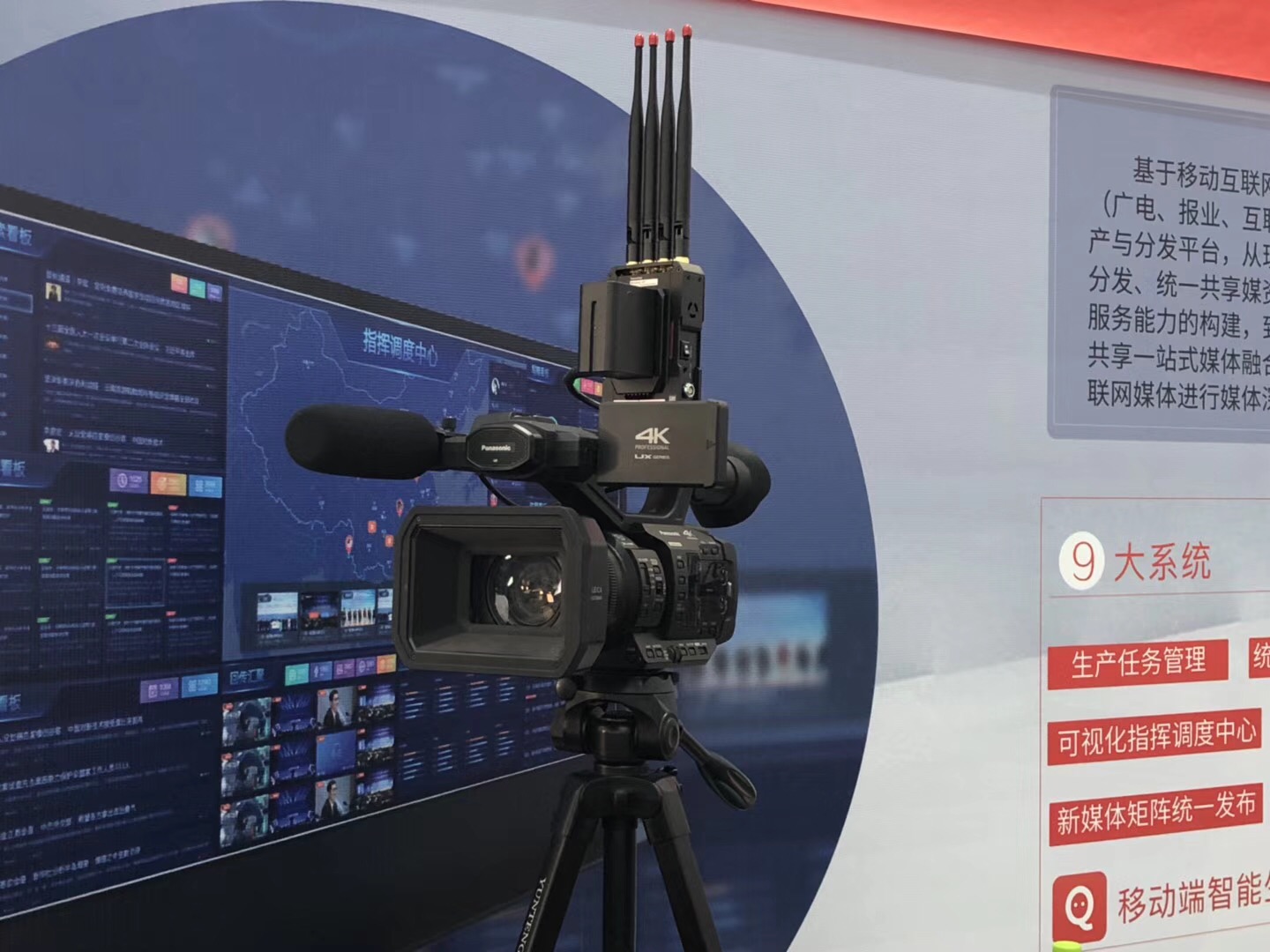

04 Application scenarios

05 Related Products
06 Related cases
